►All components are integrated on a platform, the compressor gear body is designed as horizontally detached - two-piece removable from the top - + turbo compressors are suitable and preferred units with this feature, shortening maintenance periods and providing a great advantage.
► By providing ease of disassembly, the lubrication oil is prevented from mixing with the air flow in the compressor's suction process thanks to the carbon sealing felts designed as horizontally detached - two-piece removable from the top -.
► Thanks to the horizontally detached - two-piece removable from the top flexible radial bearing and conical axial bearing, full load on the pinion gears is prevented.
► Thanks to the horizontally detached - two-piece removable from the top sliding radial bearing and flat axial bearing, full load on the main gear is prevented.
► AGMA 13 main gear and pinion gears are designed for maximum life expectancy and full interchangeability.
► The vanes with a backward form are made of precipitation hardened stainless steel for long service life and maximum efficiency.
► The air intake guide valve is pneumatically controlled.
► The loadless control valve is pneumatically controlled.
► The stainless steel discharge check valve is positively closed, non-lubricated, frictionless and rotary disc type.

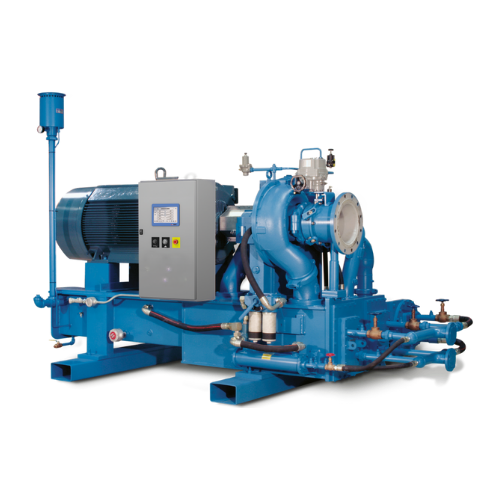

► The motor, gearbox, intercoolers, aftercooler and lubrication system are placed on a single-piece platform.
